Data
|
Theory |
Navigation deception jamming |
|
Distance |
500m＜D≤5000m（Without obstruction, customizable). Standard model no more than 1000m |
|
|
Coverage |
360° whole airspace (Directional 90° optional) |
|
|
Working Frequency 7 bands
|
GPSL1 1575.42MHz |
|
|
GPS L2 1227.6MHz |
||
|
BDS B1 1561.098MHz |
||
|
BDS B2 1207.14MHz |
||
|
Glonass L1 1602MHz |
||
|
Glonass L2 1246MHz |
||
|
Galileo 1575.42MHz |
||
|
Power Output |
≤10mW to 20W (depends on requirements) |
|
|
Reaction Time |
＜10.0s |
|
|
Simultaneous Deception Quantity |
no limitation |
|
|
Frequency Tolerance |
≤±2×10-6 |
|
|
Packing |
Mainhost Size |
410mm×190mm×335mm（LWH） |
|
Mainhost Weight |
≤20kg (packing and accessories not included) |

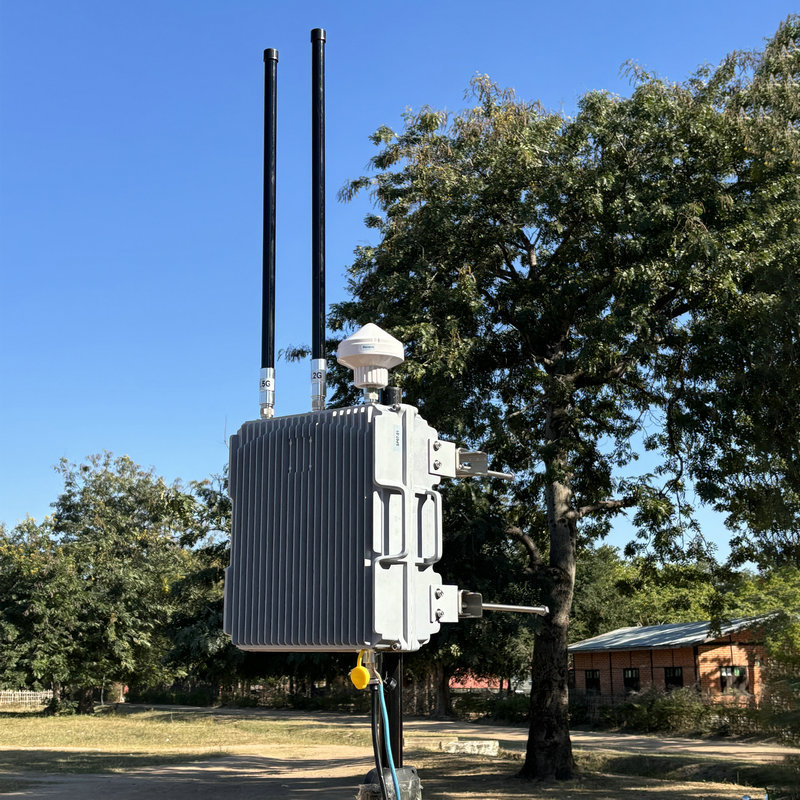

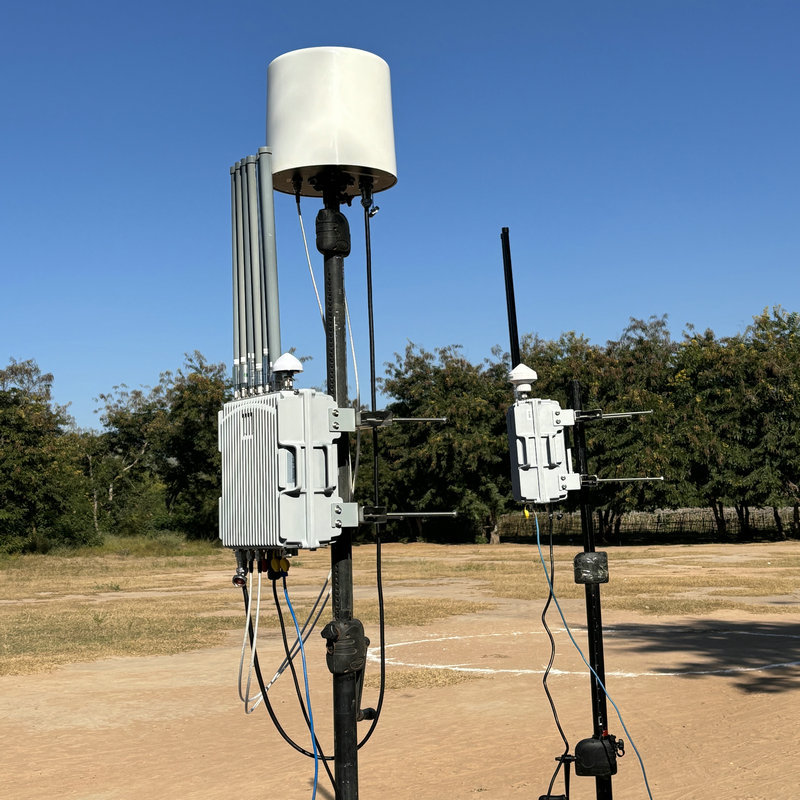

Image reference for real deployment
Software main interfaceTo the fullest extent permitted by law, the product (including its hardware, software, firmware.) is provided in the fact and in the event of defects, errors, or failures, the company disclaims all warranties, either express or implied, including merchantability, satisfaction of quality, using for a particular purpose, non-infringement of third party rights; and disclaims any special incidental or consequential damages because of using this manual or our products, including the loss of business profits, data and documents.
When using this product, please strictly follow the applicable legal requirements. If some contents in the manual differs from the laws and regulations, the laws and regulations shall take precedence.
